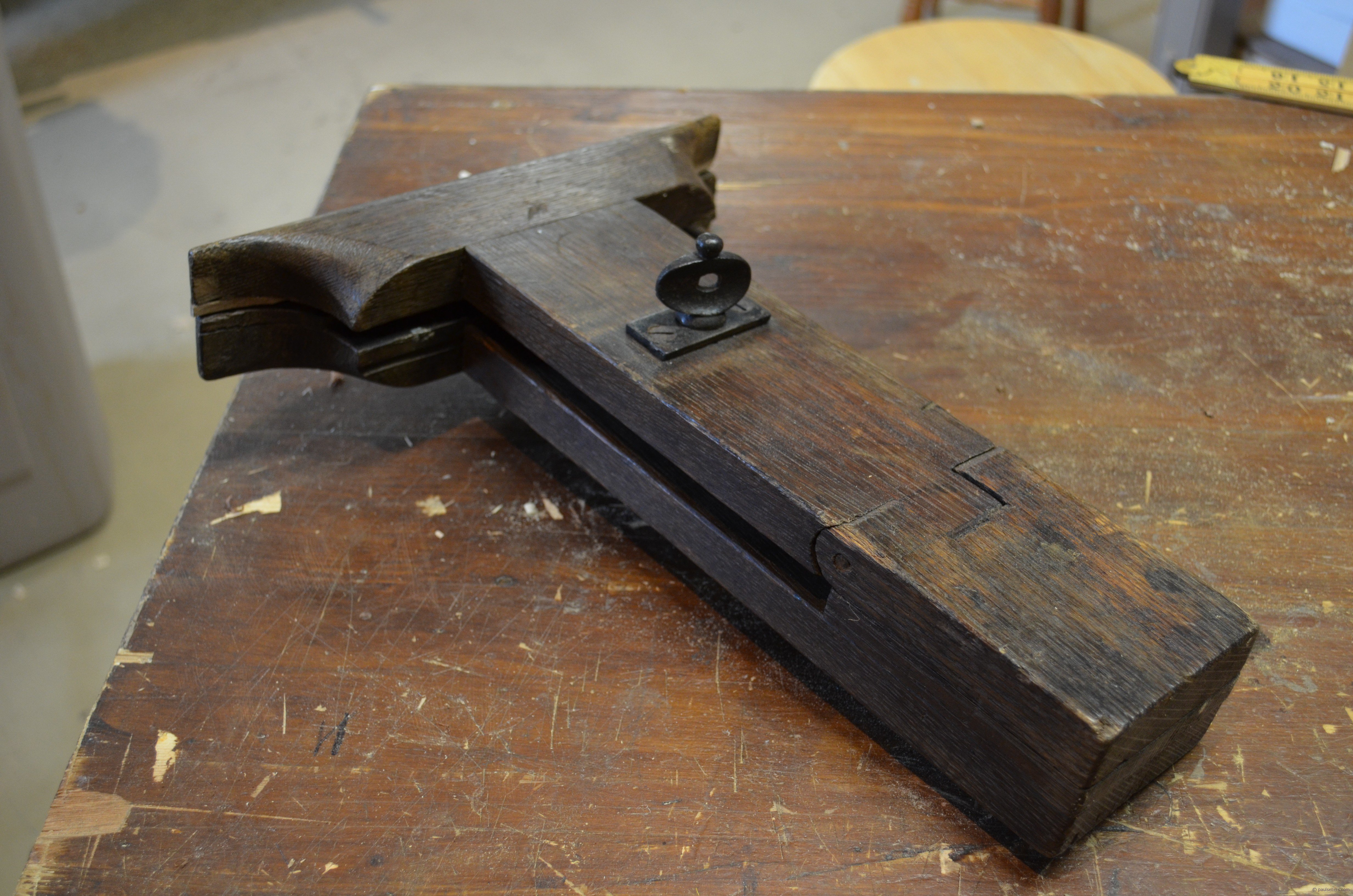

Old saw chocks post

Someone asked if I could repost sizes of a pair of saw chocks from some months back as they couldn't find in in the archives so here it is.

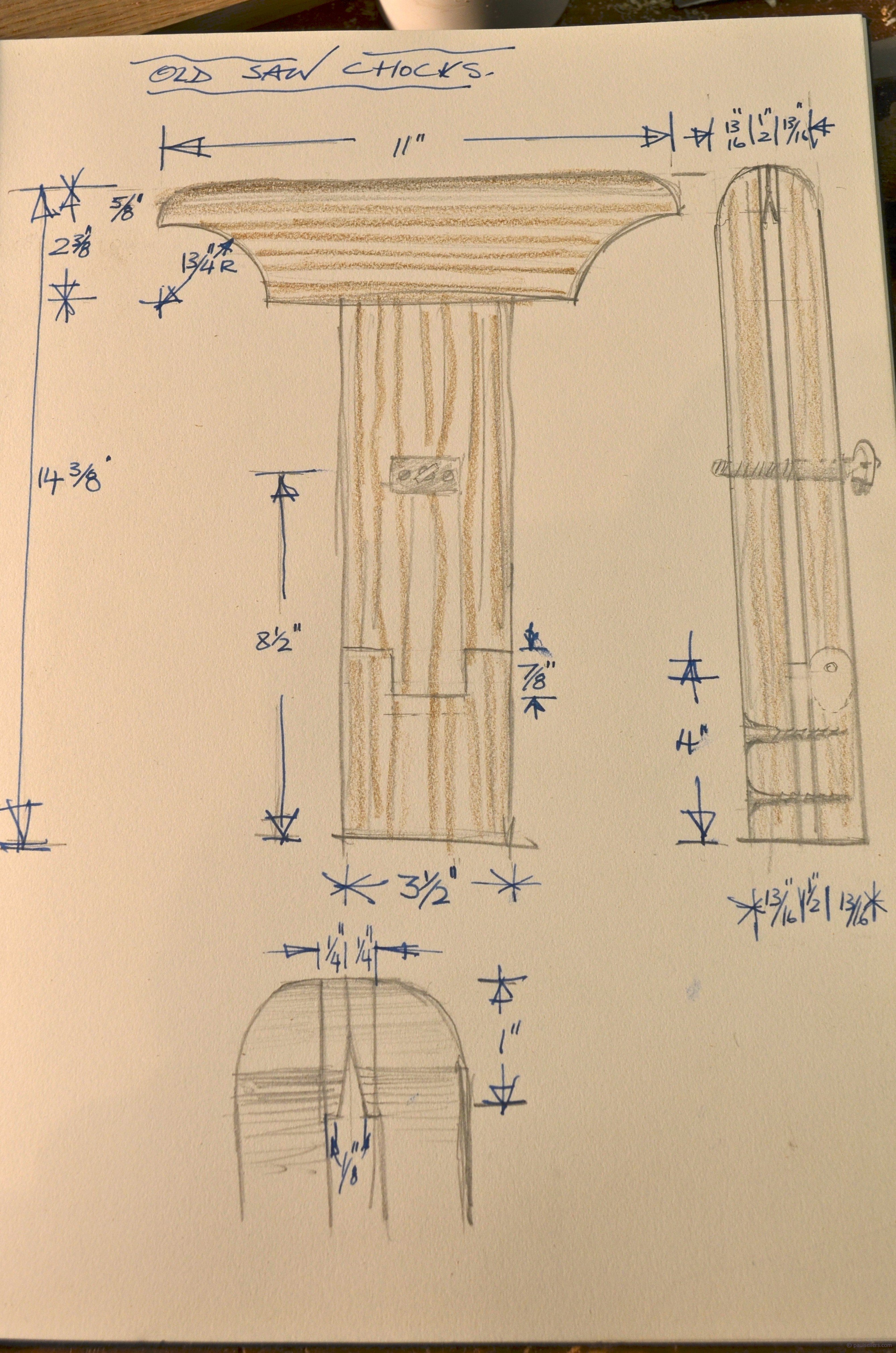

Saw chock sizes

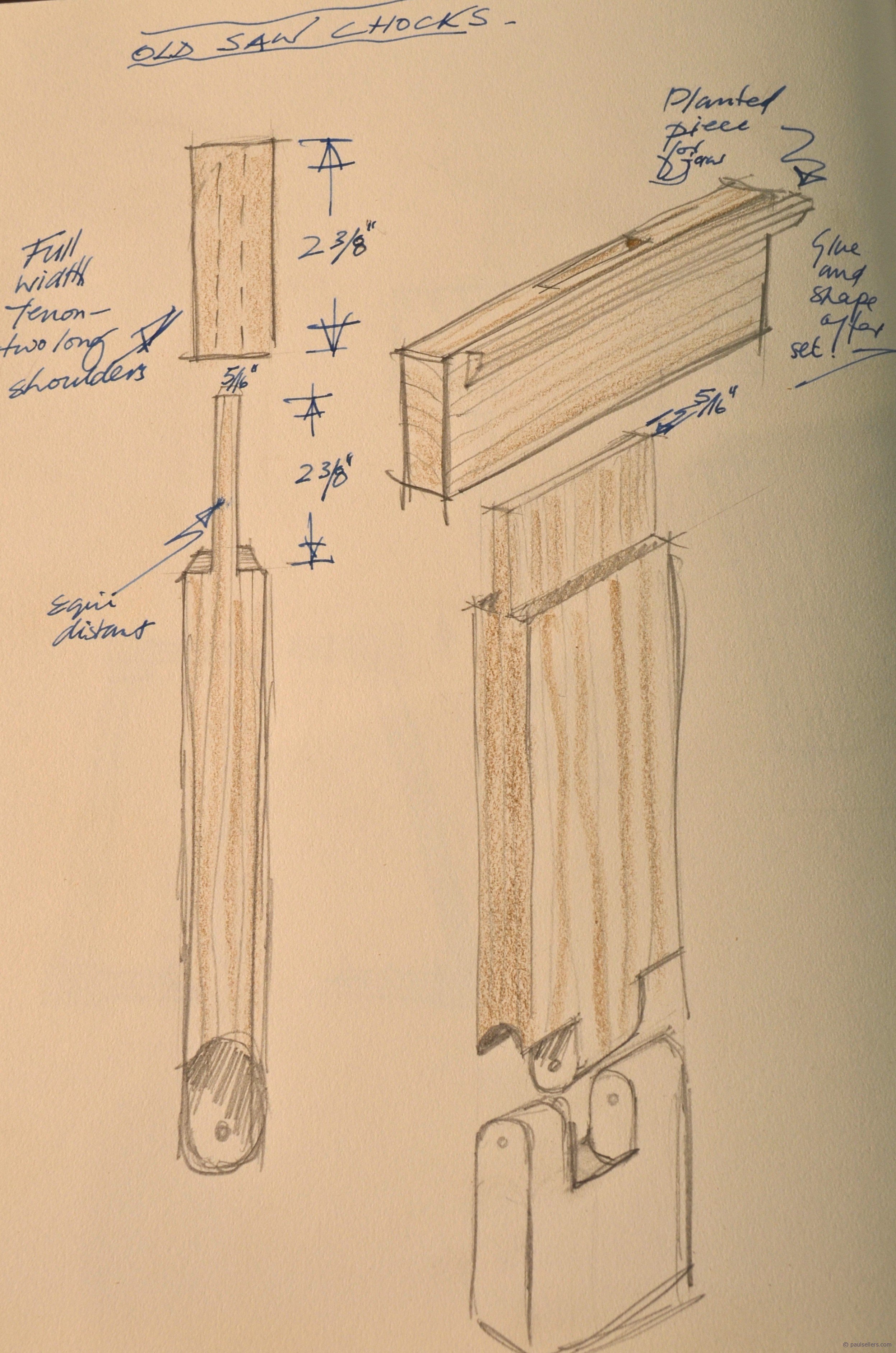

For those who sought the sizes for the saw chocks I posted of, here they are. Seems  straightforward to make, though the hardware is not standard. A bolt and wrench would work well as would a rod welded to the bolt. Anyway, you can see there are but two 5/16” M&T joints and a wooden hinge with a 3/16” steel rod passing through. Probably an afternoon’s work by hand, half or twice that by machine.
