Questions answered - planing bench leg square

Paul,

I am in the process of building your workbench. The problem I am having is I can't get each face of the leg 90 degrees to each other.  Is there any way I can do this without a jointer? I really would rather do it by hand. Is it possible? I own a Veritas #4 smoothing plane and a veritas jointer plane. I can plane each face flat but I am having trouble getting it 90 degrees to the adjacent face.  When I put my right angle square against an edge, it wobbles around. How can I get is square? Any tips on jointing by hand? I was in my shop for 3 hours on one small piece of pine. I'm going crazy.

Q:

I cannot seem to plane my bench legs square

A:

There are several issues you must resolve in this and not being there to see everything makes it a little harder for me to help. I will run through a checklist and you can check yourself against the list.

1: Examine the plane’s cutting iron

The first place to look is to the plane itself. Is the iron of consistent sharpness all the way across the iron?  If it’s not, the iron may not take a full width shaving or it may take one full width but not at equal or parallel thickness. Subsequent swipes leave one side higher than the other and so leave the leg out of square.

2: Adjustment of the plane

Is it adjusted so that the iron is perfectly parallel to the sole of the plane? This is a common failure in setting the plane. Ensuring that the iron is set perfectly parallel is the only way of taking a perfectly even shaving from the face of the wood and even a small amount of discrepancy will result in being out of square. Subsequent swipes with the plane will again leave one side higher than the other and so leave the leg out of square. Also, make certain you are not taking off too much by having the iron set too coarsely.

3: Where to start the plane

When you plane do you start at the nose and work backwards? Many times people are way to rigid and want long even strokes with the plane starting at one end and pushing heavily towards the other rather than taking shorter strokes and moving backwards along the workpiece. I start at the one end working from side to side with the same length stroke and then move backwards the distance of my first opening strokes and start again. I keep moving backwards that way until I reach the opposite end. I n completion, I set my plane for a very shallow cut, something that would likely measure about two thousandths of an inch, and take the final long strokes I need to create a pristine finish.

4: Compensatory forces

We tend to want to cock the plane over as if somehow we can register the plane to some imaginary angle of correctness and then take a series of strokes to correct the flawed squareness. In general that doesn’t work and we create on over correction comparable to corrective steering at high speed. In reality we should for the man part start by simply pressing more heavily on the side that needs more removal. This ‘willing’ the plane over really works because your hand and arm muscles tense to task and rather than bulldogging it to the wood and crying “say uncle” we draw on intuitive mastery as the wood compresses into the mouth of the plane more heavily on the heavy side needing reduction.

5: Relaxing flex to task

In essence, I find loosening up brings better results than over tenseness now knowing that when I am anxious I rarely get the results from my tools that I want or should be getting. I have confidence in what I can achieve with my tools and know their and my limitations. Loosening the grip doesn’t mean losing control but most often gaining it. White knuckling doesn’t work too well at all and white-knuckling often indicates losing the innate sensitivity we should have in maintaining total control. It indicates a deeper anxiety that momentarily permeates our whole being and thus freezes us from achieving the flex we should have throughout our body. This is regardless of tool, wood or task and should be present in us all the time. In essence we can lose contact with the very senses that should be informing us and guiding.

 6: Next

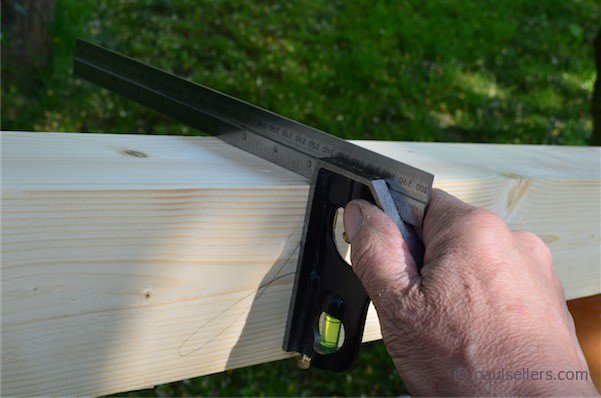

When you have one truly flat and straight face you should then focus on one adjacent face and get that face flat and straight, then check it for square to the first. Use winding sticks on the first face to make certain you have no twist in this face. If you do, you will not be able to get the second face square to the first. Also, eyeball down the first flat face corner to see if it is truly dead flat. You should be able to get this with the smoothing plane, the number four, but you could also use your jointer plane if as you say you have one.

7: Developing foursquare

Once you have the second face square to the first, and straight along its length, use a marking gauge to mark a parallel line to the first front face and mark both sides. This will make certain you plane to a parallel level. Once that’s done do the same to the last face and the leg will be square.

8: Persevere

Don’t give up. The first stage to success is to overcome the opposition. Doubting yourself is often the first obstacle.
